Multiversion concurrency control (MVCC)

202504291915
Status: #idea
Tags:

Multiversion concurrency control (MVCC)

Introduction

Logical object → Identified by primary key
DB maintains multiple physical versions of a logical object
Txn will see a consistent snaphshot of the DB form the start time of txn
Each txn has an end timestamp and begin timestamp

Ideas

Readers do not block writer AND writers do not block readers
Read-only txns can read a consistent snapshot w/o acquiring locks
- Use timestamp (logical) to determine visibility

Info

MVCC without GC supports time-travel queries

Example

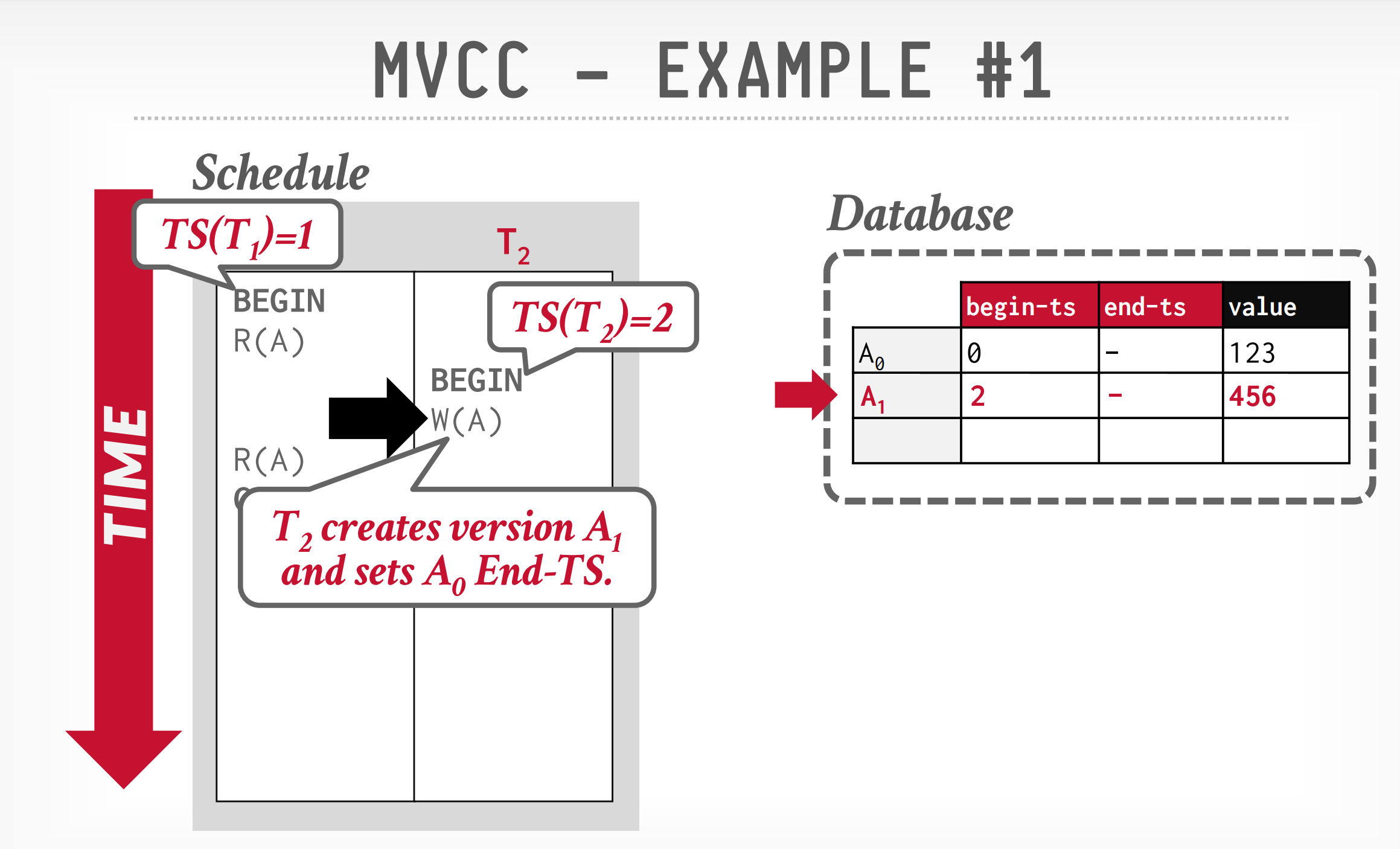

Pasted image 20250429191936.png
Notice that $T_{2}$ sets the end timestamp for $T_{1}$

Attention

$T_{b}$ can NOT create a new version if $T_{a}$ has not committed (i.e. is still active), if $a < b$

Warning

Snapshot isolation is susceptible to write-skew anomaly

Version storage

Observation: Versions form a singly linked list

1) Append-only storage

Worst
New versions appended to same table
- Entire row is copied

Version chain ordering

Oldest to Newest (O2N)
- Lookups traverse (version) chain
Newest to Oldest (N2O)
- Need to update the index pointers every version
- Better (most txns only care about latest value)

2) Time-travel storage

Entire row is copied
All older versions are stored in a separate (time-travel) table

3) Delta storage

Best.
- Only sensible approach (imo)
Only columns which are changed are stored.
Delta storage table acts as an “undo-log”

Garbage collection

Clean up versions not used by active txn
2 design questions
1. How to look for expired txns?
2. How to decide if safe to reclaim

1) Tuple-level

a) Background vacuuming

Dedicated worker does GC
Dirty tuple bitmap
- Only scans dirty tuples for GC
More popular

b) Cooperative cleaning

Workers clean when performing table scans
Only works on O2N chains
Data is never cleaned if it is not accessed

2) Txn-level

Txn tracks which versions it used
Rarely implemented

Index management

Primary indexes point to version chain head (trivial)
Secondary indices need to be managed

1) Logical pointer

Uses primary key as pointer
Requires a translation table
Not used IRL

2) Physical address

Literal pointer
Optimization: Postgres does not update secondary index if new version is in the same page
- Occurs $\approx 40 %$ of the time

Deletes

Can physically delete a tuple only when all versions of a logically deleted tuple are not visible

1) Deleted flag

Maintain a flag
Either in tuple header or a separate column

2) Tombstone tuple

Create an empty physical version to indicate

Using MVCC on a Binary Tree

References

CMU IntroDB
1. Lecture
2. Slides
